F002 Vacuum Pump Inlet Filter(20m³/h)

LVGE Ref.: LA-207Z

OEM Ref.: F002

Filter Element Dimensions: Ø63*38*69mm

Interface Size: G3/4”

Nominal Flow: 20m³/h

Function: It is installed at the intake port of vacuum pump, filtering the dust particles inhaled when the pump is running. It can reduce large particles which are sucked into the chamber and will lead to the pollution of the chamber and the vacuum pump oil. And it can also reduce the mechanical wear of the chamber. Thus the purpose of extending the service life and maintenance cycle of the vacuum pump is achieved.


Product Detail

Product Tags

Technical Description

  • Firstly, the shell adopts carbon steel seamless welding, vacuum leakage rate up to 1*10-2Pa/L/S.
  • Secondly, the surface adopts electrostatic spraying treatment, so as to have good rust prevention ability.
  • Thirdly, the interface size can be customized or transformed according to your requirements.

FAQ

  • 1.What are the filter materials of the filter element?
  1. Filter material includes wood pulp paper, polyester non-woven and stainless steel.
  • 2.What conditions are wood pulp paper suitable for?
  1. It is suitable to use in an environment with a temperature below 100 degrees Celsius to filter dry dust.
  • 3.What are the advantages and disadvantages of wood pulp paper?
  1. High dust holding, affordable, but can not be used in wet environment, and can not be washed.
  • 4.What is the filtration efficiency of conventional wood pulp paper?
  1. The filtration efficiency of conventional wood pulp paper for 2 micron dust particles is more than 99%.
  • 5.Can the vacuum pump filter made of wood pulp paper filter dust particles of 5 microns?
  1. Yes, another type of wood pulp paper can filter dust particles of 5 microns, and its filtration efficiency is more than 99%.
  • 6.What conditions are polyester non-woven material suitable for?
  1. It is suitable for temperatures below 100 degrees Celsius. Unlike wood pulp paper, it can be used in wet environments.
  • 7.What are the advantages and disadvantages of polyester non-woven material?
  1. It can be washed with water, but it costs more than wood pulp paper.
  • 8.What is the filtration accuracy of polyester non-woven material?
  1. The filtration accuracy of conventional polyester non-woven is 6 micron, and its filtration efficiency is more than 99%. Another type made of the composite material is for 0.3 micron with the filtration efficiency of more than 95%.
  • 9.What conditions are stainless steel material suitable for?
  1. It is suitable for high temperature environments below 200 degrees Celsius and even for corrosive environments.
  • 10.What are the advantages and disadvantages of stainless steel?
  1. Its filtration accuracy is relatively low and the cost is high. But it can be repeatedly washed and used.
  • 11.What is the filtration accuracy of stainless steel?
  1. The mesh sizes of commonly used are 200 mesh, 300 mesh and 500 mesh. And we also supply 100 mesh, 800 mesh and 1000 mesh.

Product Detail Picture

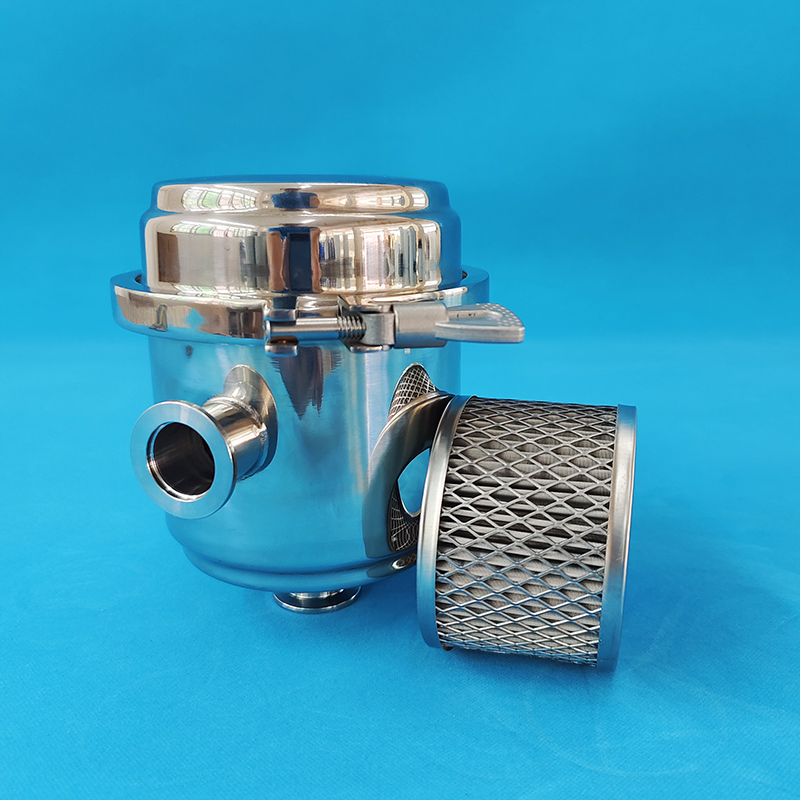

IMG_20221111_140812

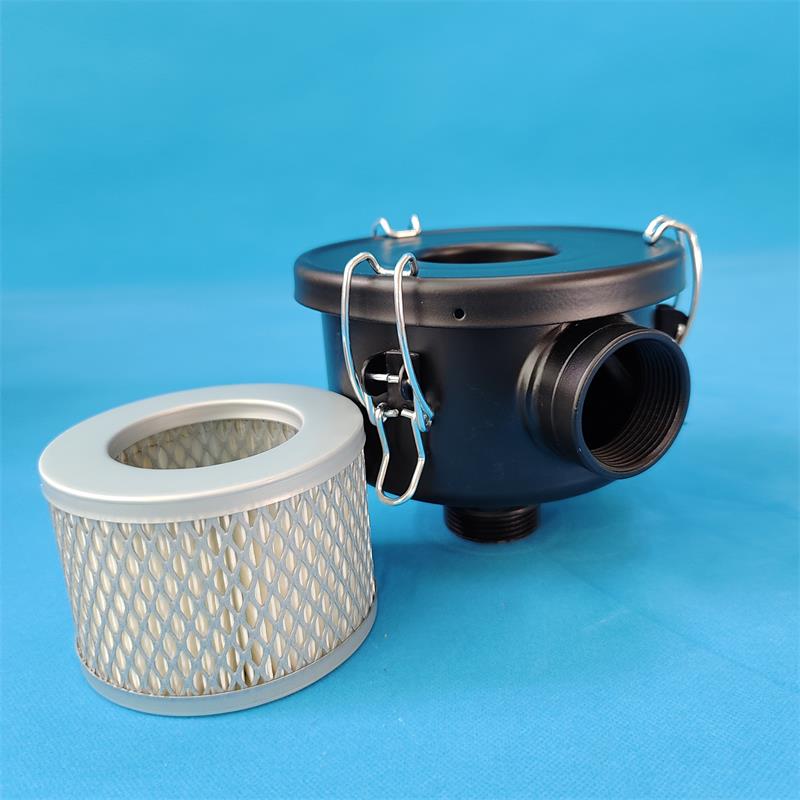

IMG_20221111_101718

27 tests contribute to a 99.97% pass rate!
Not the best, only better!

Leak Detection of Filter Assembly

Leak Detection of Filter Assembly

Exhaust Emission Test of Oil Mist Separator

Exhaust Emission Test of Oil Mist Separator

Incoming Inspection of Sealing Ring

Incoming Inspection of Sealing Ring

Heat Resistance Test of Filter Material

Heat Resistance Test of Filter Material

Oil Content Test of Exhaust Filter

Oil Content Test of Exhaust Filter

Filter Paper Area Inspection

Filter Paper Area Inspection

Ventilation Inspection of Oil Mist Separator

Ventilation Inspection of Oil Mist Separator

Leak Detection of Inlet Filter

Leak Detection of Inlet Filter

Salt Spray Test of Hardware

Leak Detection of Inlet Filter
