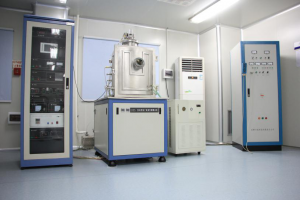

In the sophisticated world of thin-film deposition, electron beam (e-beam) evaporation stands out for its ability to create high-purity, dense coatings. A fundamental question surrounding this technology is whether it requires a vacuum pump. The answer is an unequivocal yes. A high-performance vacuum system is not merely an accessory but an absolute prerequisite for the process to function effectively and efficiently.
The core of e-beam evaporation involves focusing a high-energy electron beam onto a source material (such as gold, silicon oxide, or aluminum) contained in a water-cooled crucible. The intense local heating causes the material to melt and vaporize. These vaporized atoms then travel in a line-of-sight path and condense on a substrate, forming a thin film. This entire sequence is critically dependent on a high-vacuum environment, typically within the range of 10⁻³ Pa to 10⁻⁶ Pa.
The necessity for such an extreme vacuum is threefold. First, it ensures the unobstructed travel of the electron beam. In the presence of too many gas molecules, the electrons would scatter and collide, losing their energy and failing to deliver concentrated heat to the target. The beam would defocus, rendering the process ineffective.
Second, and most crucially, the vacuum environment guarantees the purity and quality of the deposited film. Without it, residual gases like oxygen and water vapor would contaminate the coating in two devastating ways: they would chemically react with the vaporized material to form unwanted oxides, and they would become incorporated into the growing film as impurities. This results in a film that is porous, less adhesive, and possesses inferior mechanical and optical properties. The high vacuum creates a clean, "ballistic" pathway for the vaporized atoms, allowing them to condense into a dense, uniform, and high-integrity layer.
Finally, the vacuum protects the electron gun's filament. The thermionic cathode that emits electrons operates at extremely high temperatures and would oxidize and burn out almost instantly if exposed to air.
Therefore, a sophisticated pumping system—combining roughing pumps and high-vacuum pumps like turbomolecular or diffusion pumps—is indispensable. In conclusion, the vacuum pump does not just enable electron beam evaporation; it defines it, forming an unbreakable bond that is essential for producing the high-performance coatings demanded by industries from semiconductors to optics. There also should be filters to protect vacuum pumps, if there is no, contact us.
