Oil-sealed vacuum pumps are widely used across various industries, and their efficient operation relies on two critical filtration components: oil mist filters and oil filters. Although their names are similar, they serve entirely different purposes in maintaining pump performance and environmental compliance.
Oil Mist Filters: Ensuring Clean Emissions
Oil mist filters are installed at the exhaust port of vacuum pumps and are primarily responsible for:
- Trapping oil aerosols (0.1–5 μm droplets) from the exhaust stream
- Preventing oil mist emissions to meet environmental regulations (e.g., ISO 8573-1)
- Recovering oil for reuse, reducing waste and operational costs
How They Work:
- The exhaust gas containing oil mist passes through a multi-stage filtration medium (typically glass fiber or synthetic mesh).
- The filter captures oil droplets, which coalesce into larger drops due to gravity.
- The filtered air (with <5 mg/m³ oil content) is released, while the collected oil drains back into the pump or a recovery system.
Maintenance Tips:
- Replace annually or when pressure drop exceeds 30 mbar
- Check for clogging if oil mist emissions increase
- Ensure proper drainage to prevent oil buildup

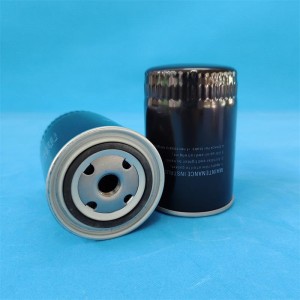

Oil Filters: Protecting the Pump’s Lubrication System
Oil filters are installed in the oil circulation line and focus on:
- Removing contaminants (10–50 μm particles) from the lubricating oil
- Preventing sludge and varnish buildup, which can damage bearings and rotors
- Extending oil life by filtering out degradation byproducts
Key Features:
- High dirt-holding capacity to reduce replacement frequency
- Bypass valve to maintain oil flow if the filter clogs
- Magnetic elements (in some models) to capture ferrous wear particles
Maintenance Tips:
- Replace every 6 months or per manufacturer guidelines
- Inspect seals to prevent leaks
- Monitor oil quality (discoloration or viscosity changes indicate filter issues)
Why Both Oil Mist Filter and Oil Filter Matter
- Oil mist filters protect the environment and reduce oil consumption.
- Oil filters protect the pump’s internal components and extend its lifespan.
Neglecting either filter leads to higher maintenance costs, poor performance, or regulatory non-compliance.
By understanding and maintaining both filters, users can maximize pump efficiency, reduce downtime, and lower operational costs.
