The vacuum pump family encompasses numerous and diverse types. We have developed corresponding vacuum pump filters for various pump models. Today, we will share insights about Roots pumps, liquid ring pumps, and dry screw vacuum pumps.
Roots Pumps
Roots pumps are characterized by quick startup, relatively low power consumption during operation within their optimal range, and low operational maintenance costs. They offer high pumping speeds and efficiency, exhibiting tolerance to small amounts of water vapor and dust in the extracted gas. The pump houses two synchronously rotating but oppositely shaped rotors. There are minimal clearances between the rotors themselves and between the rotors and the pump casing, with no direct contact. However, it is crucial to understand that Roots pumps cannot operate directly from atmospheric pressure and require a backing pump (such as a rotary vane or screw pump). While they are less sensitive to minor contamination, prolonged exposure to significant dust can still cause rotor wear. Therefore, installing a vacuum pump inlet filter is necessary to protect the pump body and the backing pump system.

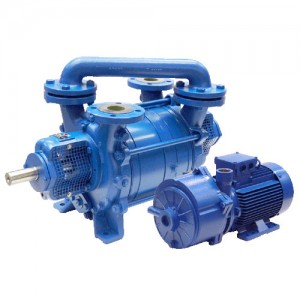

Liquid Ring Pumps
Liquid ring pumps feature a relatively simple and robust structure. While pump speeds can be high, they are typically directly coupled to an electric motor without requiring a reduction gearbox. They provide uniform suction, stable and reliable operation, simple controls, and generally straightforward maintenance. Liquid ring pumps operate on the principle of varying chamber volume for suction, compression, and exhaust, classifying them as positive displacement pumps. There is no metal-to-metal contact within the pump chamber, eliminating the need for internal lubrication and resulting in minimal wear. Sealing between rotating and stationary parts is achieved directly by the liquid ring. It is important to note that the overall system includes a liquid reservoir and separator, making it less compact than the pump unit alone. The ultimate vacuum is limited by the vapor pressure of the sealing liquid. Similar to Roots pumps, liquid ring pumps also require a vacuum pump filter during operation to ensure pump safety, especially to prevent scaling and corrosion from process contaminants.

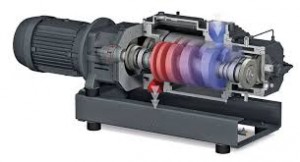

Dry Screw Vacuum Pumps
Dry screw pumps are known for their high pumping speeds and oil-free operation, eliminating contamination risks and corrosion from degraded oil. They effectively handle gases containing significant water vapor and small amounts of dust while achieving a good ultimate vacuum with relatively low power consumption. During operation, two intermeshing screw rotors rotate in opposite directions to compress and convey gas. While these pumps offer advantages like energy efficiency and extended maintenance intervals, it's important to note they typically generate more operational noise than some other technologies and still require periodic maintenance of bearings and seals. Although dry screw vacuum pumps do not require a working fluid, it is highly recommended to install a particulate filter at the inlet to prevent particles from entering and damaging the pump's precision internals. And silencer to reduce noise.
Selection and Application Guidance of Roots Pumps, Liquid Ring Pumps, and Dry Screw Vacuum Pumps
When selecting the appropriate vacuum technology, Roots pumps excel in applications requiring high pumping speeds at medium vacuum levels but must be paired with a suitable backing pump. Liquid ring pumps are particularly effective for handling condensable vapors like solvents, though their system includes auxiliary components and may require liquid management. Dry screw vacuum pumps are ideal for oil-free processes involving moist gases, offering clean operation with good vacuum performance.
For all three pump types, implementing proper filtration is not merely optional but essential for long-term reliability. Roots pumps benefit from filtration to protect both the main and backing pumps. Liquid ring pumps require filtration to prevent internal scaling and corrosion. Dry screw pumps need filtration to avoid abrasive damage to their precision screw rotors. Choosing the correct inlet and/or exhaust filter tailored to your specific process conditions represents a critical investment in protecting your equipment, ensuring operational stability, and minimizing unplanned downtime
