In the world of precision manufacturing, the integrity of metal components is paramount. Even the most meticulously engineered parts, particularly those made through die-casting or powder metallurgy, can suffer from a hidden flaw: micro-porosity. These microscopic pores and cracks within the material can lead to catastrophic failures, causing leaks under pressure, ruining surface finishes, and compromising structural strength. This is where vacuum impregnation emerges as a critical and sophisticated sealing solution.

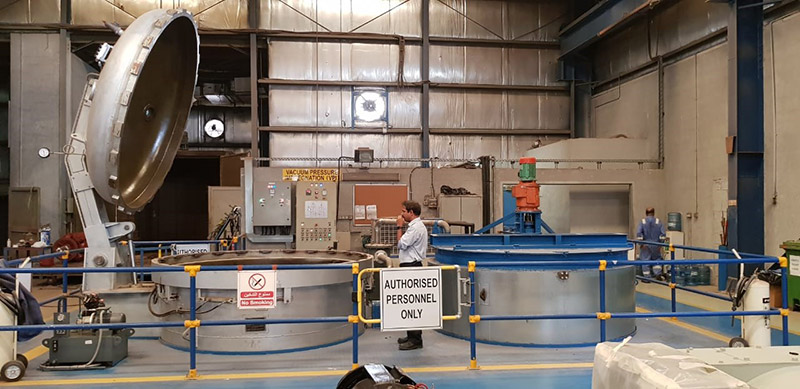

At its core, vacuum impregnation is a robust three-stage process designed to permanently eliminate porosity. The first stage involves placing the components into a sealed impregnation chamber. A powerful vacuum pump then evacuates all air from the chamber, simultaneously drawing the air trapped within the component's pores. This crucial step creates a void, ready to be filled.
The second stage begins with the introduction of a specialized liquid sealant, or impregnation resin, into the chamber while the vacuum is maintained. The significant pressure differential between the vacuum inside the pores and the atmosphere above the liquid forces the resin deep into every micro-leak pathway, ensuring complete penetration. Finally, the vacuum is released, and the parts are rinsed. A curing process, often through heat, then permanently solidifies the resin within the pores, creating a resilient, leak-proof seal.
The applications of this technology are vast and critical. In the automotive and aerospace industries, it seals engine blocks, transmission housings, and hydraulic manifolds, ensuring they can withstand high pressures without leaking fluids. Furthermore, it is a prerequisite for high-quality surface finishing. Without impregnation, fluids from plating or painting processes can become trapped in pores, later expanding and causing blisters or "plating pops." By sealing the substrate, manufacturers achieve flawless, durable coatings on consumer products like faucets and electronic device housings.
A critical, non-negotiable aspect of operating a vacuum impregnation system is the installation of appropriate filtration. This is a two-fold requirement. First, the impregnation resin itself must be kept impeccably clean. Particulate contamination can clog the very pores the process aims to fill. Therefore, in-line filters, often employing pleated polypropylene filter cartridges with ratings between 1 to 25 microns, are installed in the resin circulation loop to remove any gels or foreign particles.
Secondly, and just as importantly, is the protection of the vacuum pump. The vacuum environment can draw volatile solvents from the resin or cause minute liquid droplets to aerosolize. Without a proper inlet filter, these contaminants would be sucked directly into the pump's oil system. This leads to rapid oil emulsification, degradation, and abrasive wear on internal components, resulting in costly downtime, frequent oil changes, and premature pump failure. A well-maintained vacuum filter acts as a guardian, ensuring the pump's longevity and the system's consistent performance.
In conclusion, vacuum impregnation is far more than a simple sealing process; it is an essential quality assurance step that enhances product performance, reliability, and aesthetics. By understanding and meticulously controlling the process—including the vital installation of both resin and vacuum pump filters—manufacturers can deliver components that meet the highest standards of quality and durability.
