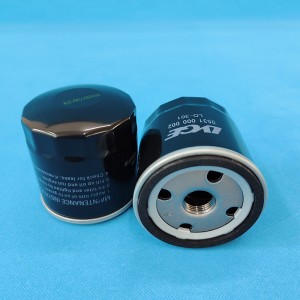

The oil filter in a rotary vane vacuum pump is a critical component that directly affects the pump's performance and service life. Its primary function is to remove solid contaminants from the lubricating oil – including metallic wear debris, airborne dust, carbonized particles, and sludge – thereby maintaining oil cleanliness. Clean oil ensures stable vacuum levels, reduces friction between moving parts, and prevents clogging of the exhaust valve and wear on sealing surfaces.
During normal operation, the vacuum pump compresses and discharges gas, but this process inevitably draws fine particles from the working environment into the oil sump. Without efficient filtration, these tiny contaminants mix with the oil, forming an abrasive paste that accelerates wear on the rotor, vanes, and cylinder wall. Moreover, oil subjected to high temperatures undergoes oxidative degradation, producing acids and varnish-like deposits. A good oil filter can trap some of these degradation products as well, helping to extend the oil’s usable life.
In a typical oil‑sealed rotary vane pump, the oil filter is placed in the oil circulation loop – either after the oil pump discharge port or inside the pump body along the main oil channel. Most filter elements are made of high‑precision borosilicate glass fiber or multi‑layer stainless steel mesh, achieving a filtration rating of 5 to 10 microns. Advanced filters often incorporate a built‑in bypass valve: if the filter element becomes clogged and the differential pressure rises too high, the valve opens automatically to maintain at least a minimal oil flow, thus preventing dry running damage to the pump.
From a maintenance standpoint, it is strongly recommended to replace the oil filter every time the oil is changed. For pumps operating in dusty environments or where corrosive chemicals are present, the replacement interval should be shortened. Key signs that indicate a clogged or failing oil filter include: a noticeable drop in ultimate vacuum, a heavy or sluggish start‑up sound, blue/white smoke from the exhaust port, and an excessive number of bubbles visible in the oil sight glass. When removing a used filter, always inspect it for metal debris. The presence of large amounts of iron or steel particles usually suggests advanced internal wear, indicating that a full pump overhaul may be required.
In conclusion, regularly replacing a correctly specified oil filter is one of the simplest and most effective measures to ensure reliable vacuum pump operation and minimize long‑term repair costs. Overlooking this small but essential part often leads to premature pump failure – a costly consequence that can be easily avoided.
