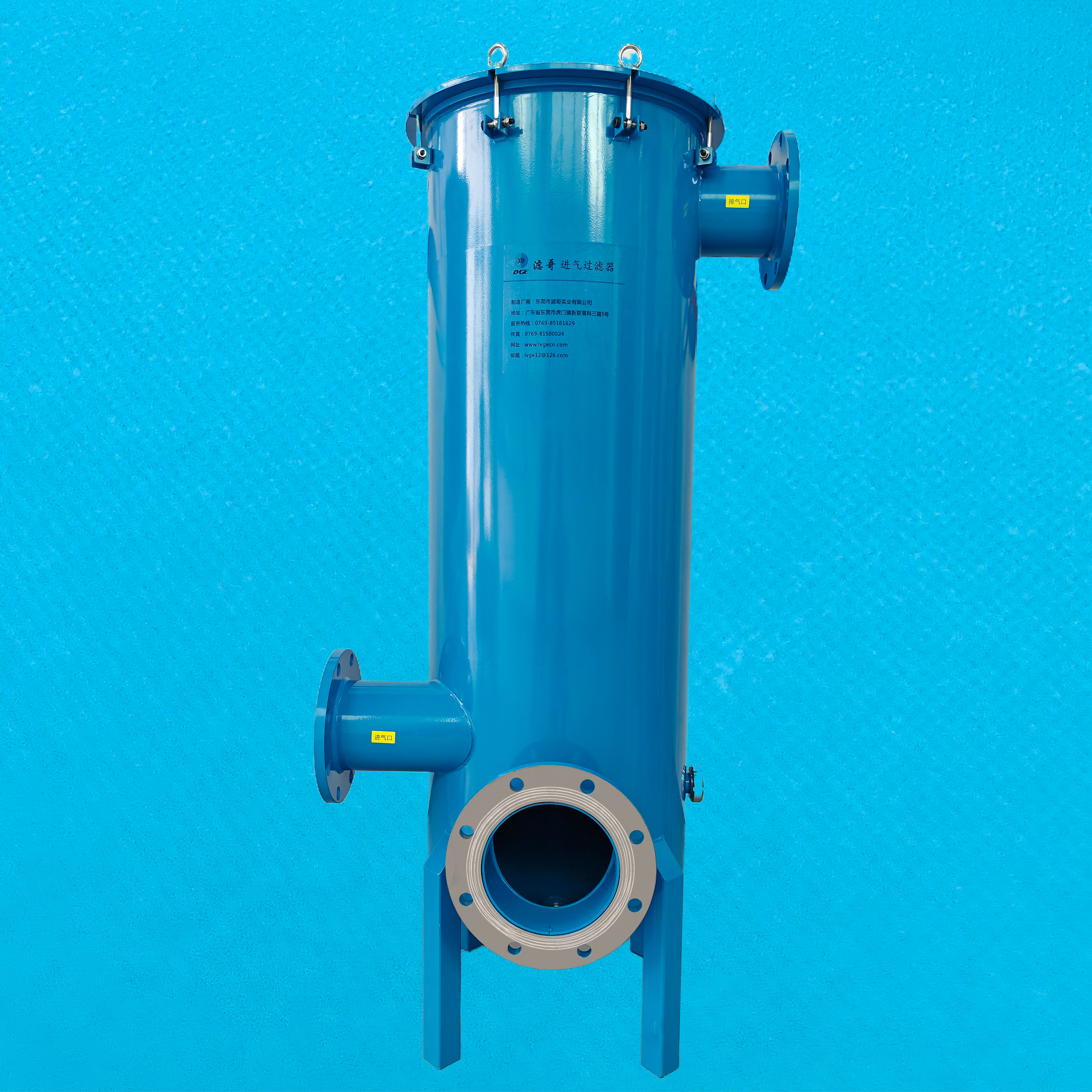

Vacuum Pump Viscous Gel Separator

LVGE Ref: LA-275Z

Applicable Flow: ≦750m³/h

Inlet & Outlet: DN65/ISO63

Element Dimensions: Design according to working conditions

Product Overview：The Vacuum Pump Viscous Gel Separator (also known as a Vacuum Pump Inlet Filter) is a high-efficiency filtration device specifically designed to handle viscous contaminants. It effectively traps dust particles and sticky gel-like substances (such as resins, curing agents, etc.), preventing them from entering the vacuum pump chamber. This significantly reduces pump oil contamination and mechanical wear, extending the service life and maintenance intervals of your vacuum pump. Ideal for various industrial applications, it is the perfect choice for ensuring stable vacuum pump operation.

Particularly suitable for filtering resins, curing agents and other viscous substances!

Send email to us

Product Detail

Product Tags

Vacuum Pump Viscous Gel Separator Key Features:

High-Efficiency Filtration: Multi-layer filter element design; high-efficiency cartridge provides high precision, while the pre-filter element is customized based on contaminant state for comprehensive protection.
Wide Compatibility: Supports various vacuum pump models (from 300m³/h to 2400m³/h). Flexible interface sizes compatible with KF, ISO, DN standards.
Durable Construction: Housing made from seamless welded carbon steel with low vacuum leak rate (1×10⁻³ Pa·L/S). Optional 304/316L stainless steel available for enhanced corrosion resistance.
Smart Maintenance: Optional differential pressure gauge indicates when to replace the filter element. Built-in drain port allows for quick and easy cleaning.
Customizable Solutions: Interface flange sizes can be customized to meet specific operational requirements.

Suitable Applications & Industries

This product is especially suitable for industries involving resins, curing agents, adhesives, and other sticky substances and dust, such as:

Chemical & Paint Manufacturing
Composite Material Production
Electronics Encapsulation & Semiconductor
Printing & Coating Equipment
Environmental & Exhaust Gas Treatment Systems

Vacuum Pump Viscous Gel Separator Technical Highlights:

Housing constructed from seamless welded carbon steel with a vacuum leak rate of 1×10⁻³ Pa·L/S. Optional 304/316L stainless steel available.
Housing surface treated with electrostatic coating for excellent rust prevention.
Interface flange sizes can be customized to fit various installation requirements.
Optional differential pressure gauge provides timely replacement alerts, preventing clogging.
Built-in drain port simplifies maintenance and reduces downtime.

Why Choose Our Vacuum Pump Viscous Gel Separator?

✅ Specifically designed for viscous gels, providing superior protection for pump internals

✅ Multiple material and precision options adaptable to high-temperature, corrosive, and harsh environments

✅ Robust construction, low leak rate, stable and reliable performance

✅ Customization available to meet specific needs

✅ Extends pump life, reduces maintenance costs, boosts production efficiency

Inquire Now for Customized Solutions!

If you are looking for a reliable Vacuum Pump Viscous Gel Separator, contact us today for detailed quotations and technical support. We offer comprehensive customization services to help you solve your filtration challenges!
