Becker 96541600000 Vacuum Pump Filter Element (Exhaust filter)

LVGE Ref: LOA-931

OEM Ref: 965416-00000

Applicable Model: Becker U4.70/U4.100

Function: An exhaust filter is an essential part of an oil-lubricated vacuum pump.
Without it, the vacuum pump will discharge oil mist during operation. LVGE filter
can capture 99% of these oil particles. After filtration, the vacuum pump will
discharge clean air to atmosphere, and all captured oil will be collected.


  • Dimensions: 100*63*7*256mm
  • Nominal Flow: 100m³/h
  • Filtration Efficiency: More than 99%
  • Application Temperature: Below 100℃
  • Opening Pressure of Safety Valve: /
  • Product Detail

    Product Tags

    Material Description:

    • The oil mist filter element is made of German glass fiber filter paper. Its flaw resistance is low, so it has a high filtration efficiency.
    • The covers at both ends of oil mist filter are made of PA66 and GF30, which have the characteristics of high temperature resistance, wear resistance, corrosion resistance, high hardness and so on.
    • The material of filter element’s surface is PET, which has excellent lipophobicity and corrosion resistance.
    • The sealing ring is made of fluorine rubber, which has the features of high temperature resistance, oil resistance, wear resistance, corrosion resistance and so on.

    Installation and Operation Video

    FAQ

    • What are the main products of your company?
    1. We mainly supply intake filter, exhaust filter and oil filter.
    • What are the advantages of your materials?
    1. The filter paper is made of glass fiber imported from Germany; the non-woven fabric does not spray glue; the covers are made PA66 and GF30.
    • We have all kind of pumps. Can you provide us with more comprehensive services?
    1. Sure, we can provide ODM and OEM services for you. With more than 10 years of design and production experience, our team will provide you with high-quality after-sale service .
    • What about the operation life of filter elements?
    1. It’s more than 3 months, even a year, which is actually depending on the working conditions. And we provide a warranty period of 2000 hours.
    • What are the acceptable payment methods for your company?
    1. Western Union, PayPal and T/T, etc.

    Product Detail Picture

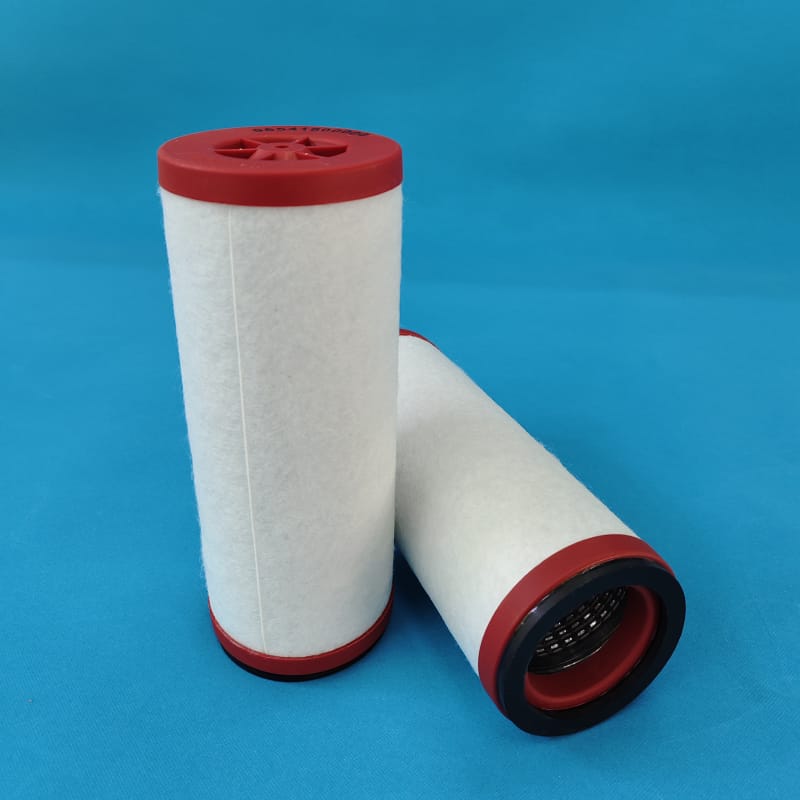

    IMG_20221111_150257

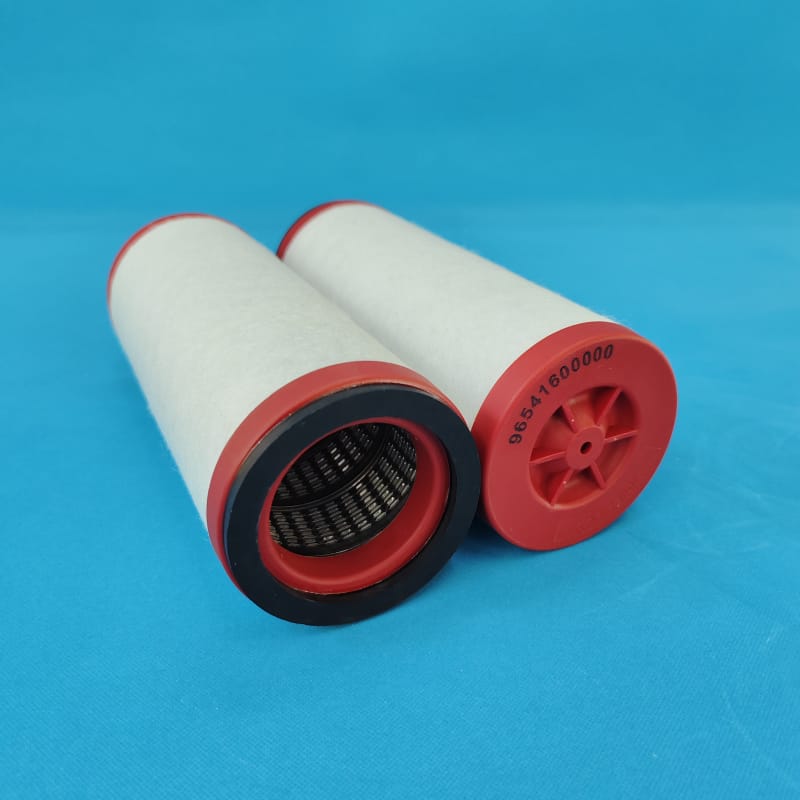

    IMG_20221111_150333

    27 tests contribute to a 99.97% pass rate!
    Not the best, only better!

    Leak Detection of Filter Assembly

    Leak Detection of Filter Assembly

    Exhaust Emission Test of Oil Mist Separator

    Exhaust Emission Test of Oil Mist Separator

    Incoming Inspection of Sealing Ring

    Incoming Inspection of Sealing Ring

    Heat Resistance Test of Filter Material

    Heat Resistance Test of Filter Material

    Oil Content Test of Exhaust Filter

    Oil Content Test of Exhaust Filter

    Filter Paper Area Inspection

    Filter Paper Area Inspection

    Ventilation Inspection of Oil Mist Separator

    Ventilation Inspection of Oil Mist Separator

    Leak Detection of Inlet Filter

    Leak Detection of Inlet Filter

    Salt Spray Test of Hardware

    Leak Detection of Inlet Filter
