Leybold Vacuum Pump Oil Mist Filter 71416340

LVGE Ref: LOA-921

OEM Ref: 71416340

Applicable Model: Leybold SV25B

Function: When the vacuum pump is working, it will exhaust fume filled with oil particles. The filter will separate and collect the oil from the exhaust, so as to discharge clean gas and recycle the oil.


  • Dimensions: 55*153mm
  • Nominal Flow: 25m³/h
  • Filtration Efficiency: More than 99%
  • Application Temperature: Below 100℃
  • Opening Pressure of Safety Valve: 90±10KPa
  • Product Detail

    Product Tags

    Installation and Operation Video

    FAQ

    • Is your glass fiber filter paper imported from Germany?
    1. Yes. It could be used for a long time and does not require frequent replacement. And it has the features of corrosion resistance, low flow resistance and high filtration efficiency. We could provide you with a video comparing the effects before and after installing the filter element if required.
    • Are the covers at both ends of your filter easy to penetrate?
    1. No, all of our lids have passed the impact test and the bend test. They are made of PA66 and GF30, with the features of high hardness, abrasion resistance, corrosion resistance, and heat resistance.
    • Is the sealing ring heat resistant?
    1. Yes, the sealing ring is made of FKM, which is heat resistant, abrasion resistant and corrosion resistant.
    • Do you spray on your product?
    1. Our non-woven fabrics are non-spray. Although the spray-bonded wadding looks smooth, it may melt under high temperature operation, thus polluting the oil of vacuum pumps. And our non-woven fabrics are made of PET, which are oleophobic and corrosion resistant.
    • Can your filter element be cleaned?
    1. The series of the Leybold’s replacements cannot be cleaned. But the filter element can be used for at least three months without frequent replacement. Only the low precision filter element of dual stage pump can be cleaned with citric acid, however, the high precision filter element is disposable.

    Product Detail Picture

    Leybold Vacuum Pump Oil Mist Filter 71416340-1

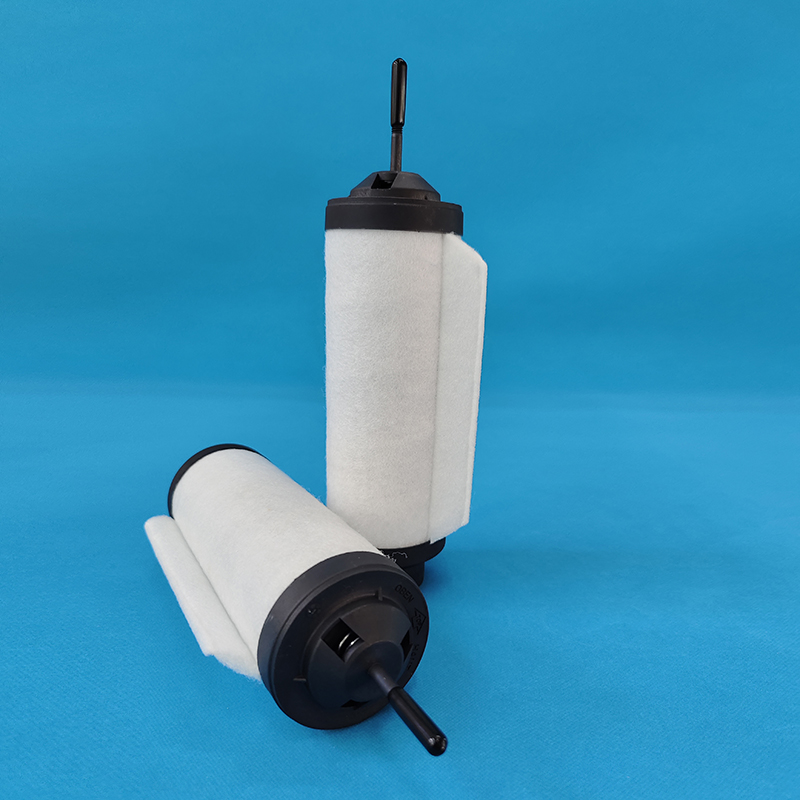

    Leybold Vacuum Pump Oil Mist Filter 71416340-2

    27 tests contribute to a 99.97% pass rate!
    Not the best, only better!

    Leak Detection of Filter Assembly

    Leak Detection of Filter Assembly

    Exhaust Emission Test of Oil Mist Separator

    Exhaust Emission Test of Oil Mist Separator

    Incoming Inspection of Sealing Ring

    Incoming Inspection of Sealing Ring

    Heat Resistance Test of Filter Material

    Heat Resistance Test of Filter Material

    Oil Content Test of Exhaust Filter

    Oil Content Test of Exhaust Filter

    Filter Paper Area Inspection

    Filter Paper Area Inspection

    Ventilation Inspection of Oil Mist Separator

    Ventilation Inspection of Oil Mist Separator

    Leak Detection of Inlet Filter

    Leak Detection of Inlet Filter

    Salt Spray Test of Hardware

    Leak Detection of Inlet Filter
