It is normal for a vacuum pump to generate some heat during operation. However, if the temperature becomes too high (for example, too hot to touch for a long time), attention is needed. The causes of overheating usually come down to poor heat dissipation, overload operation, or internal friction. Interestingly, many of these issues are closely related to the selection and maintenance of the inlet filter.
Heat Dissipation Problems
The most common cause is excessive dust accumulation on the pump body or a faulty cooling fan. If a vacuum pump operates for a long time in a dusty environment, the cooling fins on the pump and motor housing become caked with oil and dust, forming an insulating layer that traps heat. Additionally, you should check whether the cooling fan at the rear of the pump is intact and spinning smoothly.
Excessive Pumping Load
This is an easily overlooked factor, and it is often directly related to the inlet filter. When the pumping load remains excessively high, the motor operates at a high current for extended periods, leading to severe overheating. Several filter-related situations are worth noting:
- Excessively high filter precision: Some users choose ultra-high-precision filter elements (e.g., 0.01μm) in pursuit of a cleaner vacuum environment. Such filters create significant flow resistance, essentially forcing the vacuum pump to work as if wearing a high-resistance mask. The load naturally surges.
- Undersized filter: If the filter's rated flow capacity is lower than the pump's pumping speed, a bottleneck effect occurs. The pump must overcome extra resistance to draw enough air, resulting in overload and overheating.
- Clogged filter element not replaced: This is the most common scenario. Over time, the filter element becomes caked with dust, the pressure differential increases, and resistance rises significantly. If not replaced or cleaned in time, the vacuum pump operates under chronic overload, and the temperature remains persistently high.
Internal Mechanical Friction
When abnormal friction occurs inside the pump body, a large amount of electrical energy is converted into heat. The most common cause is foreign material entering the pump chamber — for example, weld slag, thread debris, or hard particles from the environment being sucked in and becoming jammed between the rotor and end cover, causing severe friction and even localized burning. This is precisely where the inlet filter plays its core role: a properly selected and regularly maintained filter can effectively block these damaging particles, protect the precise rotor clearances, and prevent such overheating failures at the source.
Additionally, lack of lubrication or worn bearings can also cause localized temperature rise, which typically requires professional repair.

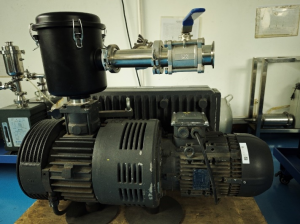

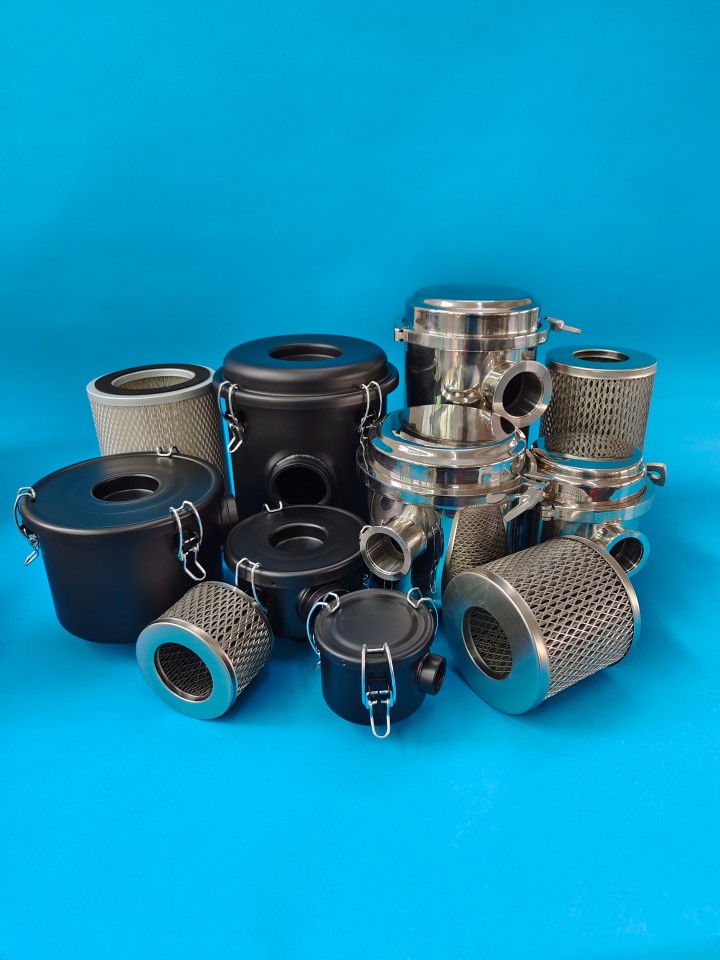

When you find a vacuum pump overheating abnormally, you can first check the external cooling conditions. Then, focus on the inlet filter — confirm that its size is appropriate, its precision is moderate, and the filter element is not overdue for replacement. Many seemingly mysterious overheating problems can be solved simply by installing a suitable filter element.
