Many customers install a silencer and find that the workshop noise is indeed reduced—but the vacuum pump seems to have "fallen ill": pumping speed slows down, energy consumption spikes, and the machine even overheats severely. What's the problem? The answer is often four words: excessive backpressure.
What Is Backpressure?
Simply put, backpressure is the resistance encountered when gas is being discharged. A vacuum pump is designed so that its exhaust port should remain unobstructed. If the silencer has an unreasonable internal structure, narrow flow channels, or overly dense sound-absorbing material, exhaust resistance will increase dramatically. This resistance acts back on the pump chamber—that is "backpressure."
You can think of backpressure as pinching the exhaust pipe: the pump is trying to "blow" gas out, but something is blocking the front end, so the pump must work much harder to push the gas through.
Three Major Impacts of Backpressure on the Vacuum Pump System
The consequences of elevated backpressure go far beyond "slightly slower pumping." It drags down the entire system in three ways:
1. Reduced Pumping Speed
Poor exhaust flow directly slows the rate at which gas is expelled from the pump chamber. The time required to reach the target vacuum level is prolonged, and the production cycle slows down. For continuous production lines, this "half-beat slower" directly affects throughput.
2. Increased Energy Consumption
To overcome exhaust resistance, the pump must perform additional work. Motor load increases, and electricity costs rise accordingly. A vacuum pump operating under high backpressure for extended periods may see significantly higher electricity expenses than under normal conditions.
3. Shortened Service Life
This is the most easily overlooked yet most costly impact. Long-term operation under high backpressure causes the pump body temperature to rise continuously, lubricating oil performance to degrade, and seals to age prematurely. In severe cases, the motor may burn out due to overload, leading to unplanned downtime and high repair costs.

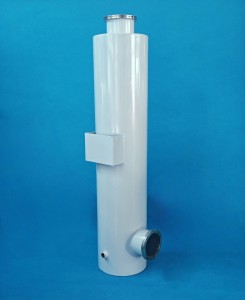

A Good Silencer Must Balance "Noise Reduction" and "Low Resistance"
A vacuum pump silencer that truly meets application requirements must strike a balance between noise reduction effectiveness and low-backpressure flow capacity. It cannot choke off the flow path in pursuit of noise reduction, nor can it abandon silencing performance in pursuit of unobstructed flow.
Specifically, a high-quality silencer typically features:
- Rational Flow Path Design: Internal gas channels are spacious and smooth, avoiding abrupt contractions or sharp bends to minimize local resistance losses.
- Optimized Silencing Structure: Uses reactive or composite silencing structures such as expansion chambers, resonance cavities, or micro-perforated panels—rather than relying solely on dense sound-absorbing material to "block" noise.
- Diameter Matched to the Pump: The silencer's connection diameter and flow capacity must match the vacuum pump's exhaust volume and port size—no "small horse pulling a big cart."
Selection Recommendations of Vacuum Pump Silencer
When choosing a silencer, it should be considered as part of the vacuum system's exhaust path as a whole—not as an isolated "noise-reduction accessory." A properly selected silencer helps maintain equipment efficiency and reduce noise; a poorly selected one can become a bottleneck that impairs system operation.
In practice, the following steps are recommended:
1. Clarify the pump's exhaust parameters: Including exhaust volume, port diameter, and exhaust pressure, as the basis for selection.
2. Pay attention to the silencer's rated flow and pressure loss specifications: Prioritize products that specify low pressure loss and high flow capacity.
3. Install a pressure gauge at the exhaust end to monitor backpressure changes: After installation, observe the actual burden the silencer places on the pump through the pressure gauge to judge whether the selection is appropriate. At the same time, it is recommended to install a filter at the vacuum pump inlet to prevent dust and impurities from entering the pump chamber and causing wear—working together with the silencer to ensure efficient and stable operation of the vacuum pump.
4. Regular inspection and cleaning: Accumulated dust or oil inside the silencer will further increase resistance. Only regular maintenance can maintain long-term low-resistance operation.
In short, a silencer is not an accessory that you simply "install and forget." Understanding backpressure is the key to choosing the right silencer—allowing your vacuum pump to find the optimal balance between quiet operation and high efficiency.
