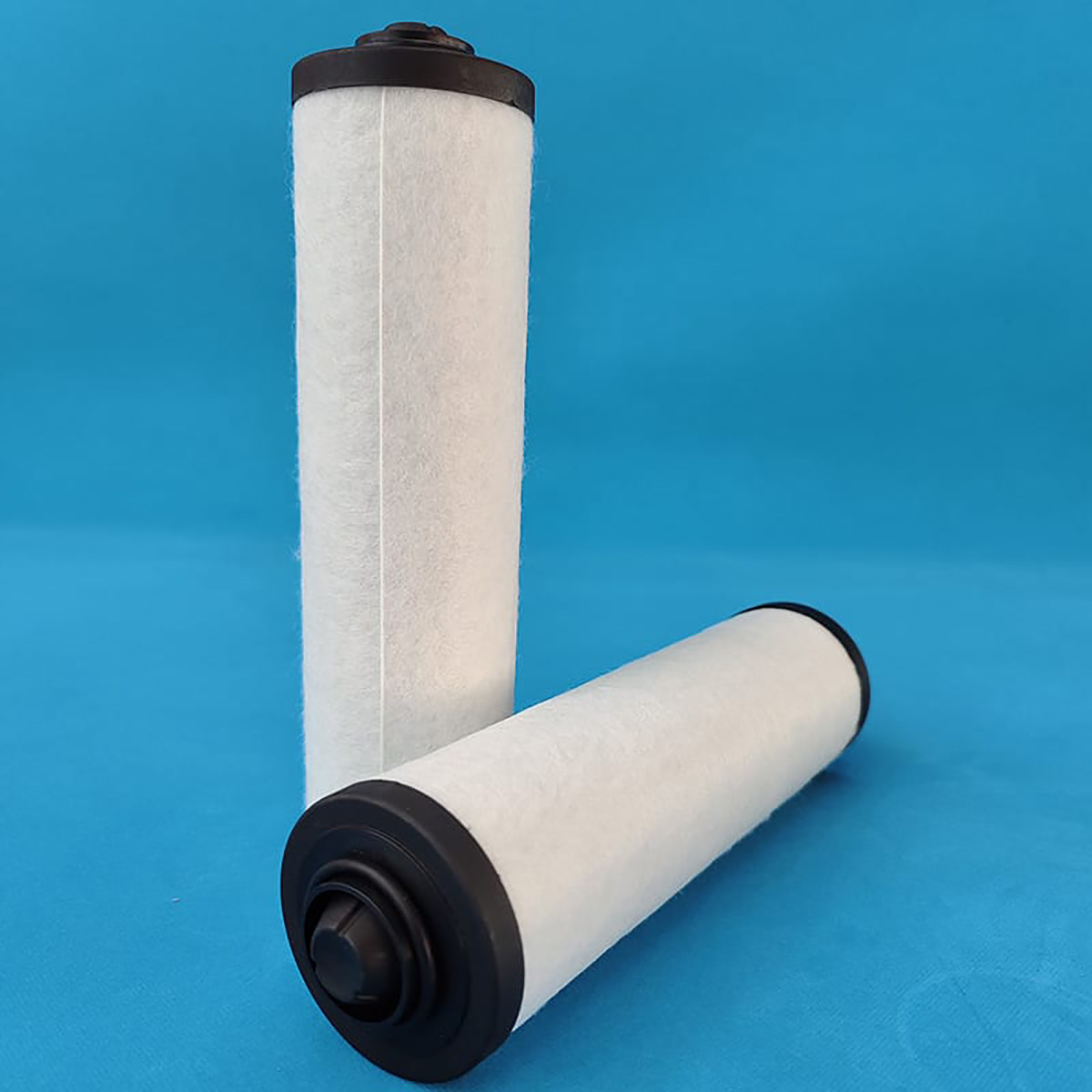

Busch Vacuum Pump Oil Gas Separator 0532140156 (Exhaust filter)

LVGE Ref: LOA-911

OEM Ref: 0532140156; 0532000512

Applicable Model: Busch RA0040F/RA0025F

Function: The exhaust filter is an important component of the oil-lubricated vacuum pump. LVGE filter
can capture the oil molecules generated by the vacuum pump during operation, so as to discharge clean
air and reuse the oil.


  • Dimensions: 72*208mm
  • Nominal Flow: 40m³/h
  • Filtration Efficiency: More than 99%
  • Application Temperature: Below 100℃
  • Opening Pressure of Safety Valve: /
  • Product Detail

    Product Tags

    Material Description:

    • 1.Filter paper material is German glass fiber paper with high filtration efficiency, good corrosion resistance and low resistance.
    • 2. The filter element’s surface is made of PET, which is oleophobic and corrosion resistant.
    • 3. The both covers is made of PA66 and GF30, which are resistant to high temperature, abrasion, corrosion.
    • 4. The sealing ring material is made of high-quality fluorine rubber, which is resistant to high temperature, oil, wear and corrosion.

    About Us

    Dongguan LVGE Industrial Co., Ltd. is a vacuum pump filter manufacturer with more than 10 years of experience in the industry. As of October 2022, LVGE has become the OEM or ODM of filter for 26 large vacuum pump manufacturers worldwide, and has cooperated with 3 enterprises of Fortune 500.

    We have a standard workshop with advanced producing equipment and laboratory equipped with advanced testing apparatus. Our daily production can reach more than 10000 pieces. In addition, every product have to pass 27 tests through entire production. Under our strict control, the pass rate is up to 99.97%.

    With the efforts of our R&D team, we not only gained certifications of ISO9001 quality management system and the State Environmental Protection Administration of China, but also hold more than 10 patents on. Our current research focus is on gas-liquid separators and silencers. Choose LVGE for a better working environment with cleaner air and less noise!

    Installation and Operation Video

    Product Detail Picture

    IMG_20221111_142130

    27 tests contribute to a 99.97% pass rate!
    Not the best, only better!

    Leak Detection of Filter Assembly

    Leak Detection of Filter Assembly

    Exhaust Emission Test of Oil Mist Separator

    Exhaust Emission Test of Oil Mist Separator

    Incoming Inspection of Sealing Ring

    Incoming Inspection of Sealing Ring

    Heat Resistance Test of Filter Material

    Heat Resistance Test of Filter Material

    Oil Content Test of Exhaust Filter

    Oil Content Test of Exhaust Filter

    Filter Paper Area Inspection

    Filter Paper Area Inspection

    Ventilation Inspection of Oil Mist Separator

    Ventilation Inspection of Oil Mist Separator

    Leak Detection of Inlet Filter

    Leak Detection of Inlet Filter

    Salt Spray Test of Hardware

    Leak Detection of Inlet Filter
