A vacuum feeder is an efficient device that uses negative pressure to convey powdered materials. It is widely used in the packaging and conveying processes of industries such as milk powder, food additives, and pharmaceuticals. The core power source of this equipment is the vacuum pump, which provides continuous and stable negative pressure suction for the entire system. The vacuum pump filter is typically installed at the inlet of the vacuum pump, serving to further purify the air before it enters the pump.

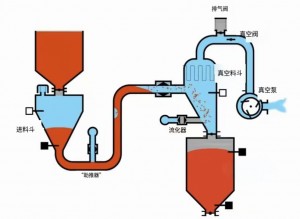

During operation, the vacuum feeder uses the negative pressure generated by the vacuum pump to draw powdered material from the raw material container into the conveying pipeline and finally into the receiving hopper. Inside the hopper, a main filter is installed to separate the powdered material particles from the air. The air, after passing through this main filter, then flows through the pipeline toward the vacuum pump. The main filter undertakes the vast majority of the air-material separation task and acts as the first line of defense against material entering the pump.
However, during continuous production or when handling very fine powders, a small amount of fine dust may still pass through the main filter element and travel further with the airflow. If this trace amount of dust enters the vacuum pump directly, it can accumulate over time and cause significant wear to precision components such as impellers, rotors, and seals. This can affect the pump’s operational stability and service life, and may even lead to reduced efficiency or sudden failure of the entire conveying line.

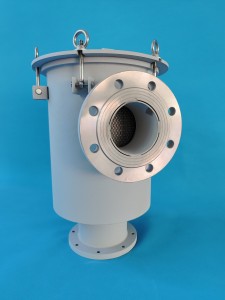

This is precisely where the vacuum pump filter plays a critical role. Acting as a secondary interception barrier, it is installed after the main filter and before the vacuum pump, specifically designed to capture the tiny amounts of powdered material that escape the main filter. By providing this additional stage of filtration, the vacuum pump filter helps ensure that the air entering the pump is as clean as possible, effectively preventing dust-related wear on internal pump components, maintaining long-term pump stability, and ensuring the overall efficiency of the vacuum feeding system.
In summary, the stable operation of a vacuum feeder depends on the vacuum pump, and the stable operation of the vacuum pump depends on the protection provided by the vacuum pump filter. The main filter handles coarse separation, while the vacuum pump filter provides fine protection. Both play distinct yet indispensable roles. Only with a properly selected vacuum pump filter can the pump’s service life be extended, maintenance costs reduced, and the entire vacuum feeding system kept efficient and reliable.
