F003 Vacuum Pump Stainless Steel Inlet Filter(100~150m³/h)

LVGE Ref.: LOA-202ZB

OEM Ref.:F003

Filter Element Dimensions: Ø128*65*125mm

Interface Size: KF40

Nominal Flow: 100~150m³/h

Function: Installed at the inlet of the vacuum pump, it can extend the service life of the vacuum pump by prevent large dust particles from being sucked into the pump chamber, which may cause contamination of the vacuum pump oil and mechanical wear of the vacuum pump.


Product Detail

Product Tags

Material Description:

  • Interface: KF40 in stock (Customizable).
  • Housing: 304 stainless steel.
  • Material of Filter Cartridge:
  1. a.Wood Pulp Paper.
  2. b.Polyester Non-Woven
  3. c.Stainless Steel

FAQ

  • 1.What are the benefits of a stainless steel housing?
  1. Stainless steel has excellent corrosion resistance and is aesthetically pleasing. Besides, our housing adopts seamless welding technology leading to a leakage rate of 1*10-5Pa/L/s.
  • 2.What is the difference between the three filter Cartridges?
  1. a. Cartridge made of Wood Pulp Paper is suitable for dry conditions below 100℃. It is the cheapest with high filter accuracy and dust holding. The general type is for filtering 2um dust particles, and its filtration efficiency is more than 99%. The other specification is for filtering 5um dust particles, and its filtration efficiency is more than 99%.
  2. b. Cartridge made of Polyester Non-Woven also have high filter accuracy. But it can be applied to humid conditions below 100℃. It can be cleaned by washing with water. Two to three times is advisable. Excessive cleaning will affect filtration efficiency. The general specification is for filtering 6um dust particles, and its filtration efficiency is more than 99%. The other specification made of composite materials is for filtering 0.3um dust particles, and its filtration efficiency is more than 95%.
  3. c. Cartridge made of Stainless Steel is the most expensive but worth it. It has great temperature resistance (below 200℃) and corrosion resistance. What’s more, it can repeatedly clean and use. The general specifications’ mesh sizes are 200 mesh, 300 mesh and 500 mesh. Sizes of other specifications are 100 mesh, 800 mesh and 1000 mesh.

Product Detail Picture

IMG_20221111_100306

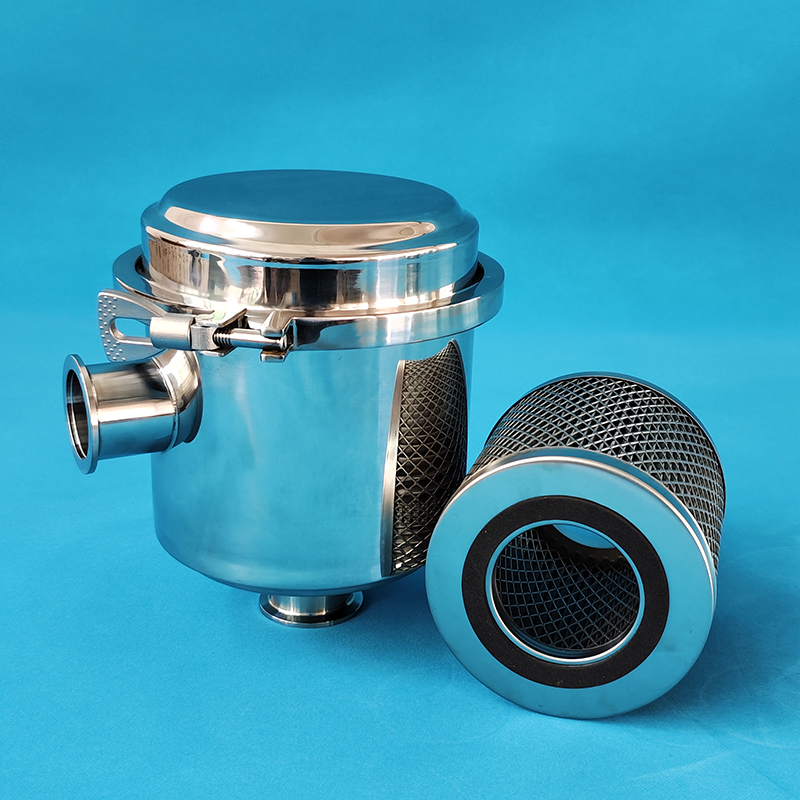

IMG_20221111_135738

27 tests contribute to a 99.97% pass rate!
Not the best, only better!

Leak Detection of Filter Assembly

Leak Detection of Filter Assembly

Exhaust Emission Test of Oil Mist Separator

Exhaust Emission Test of Oil Mist Separator

Incoming Inspection of Sealing Ring

Incoming Inspection of Sealing Ring

Heat Resistance Test of Filter Material

Heat Resistance Test of Filter Material

Oil Content Test of Exhaust Filter

Oil Content Test of Exhaust Filter

Filter Paper Area Inspection

Filter Paper Area Inspection

Ventilation Inspection of Oil Mist Separator

Ventilation Inspection of Oil Mist Separator

Leak Detection of Inlet Filter

Leak Detection of Inlet Filter

Salt Spray Test of Hardware

Leak Detection of Inlet Filter
